This option is used for the VM type capacitors. It is intended to relieve the lateral load to the capacitance adjustment screws possibly caused by central misalignment between the vacuum variable capacitor and the motor being installed.
(Remark) Screw positioning matches the P.C.D.60.
(Remark) Screw positioning matches the P.C.D.45.

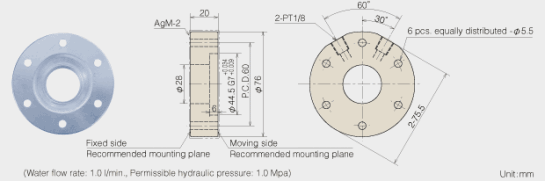

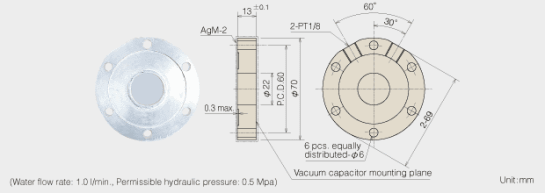

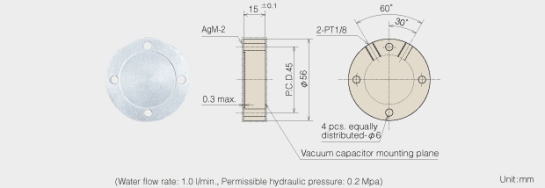

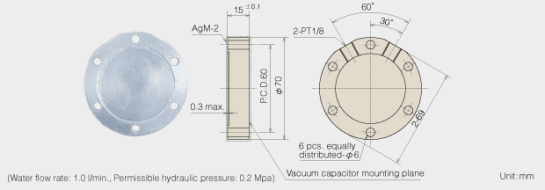

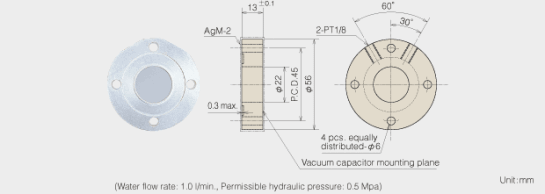

This option is used for the VH and VT type capacitors. It is intended to enhance the cooling capacity of the capacitors. There are water-cooling flange lineups applicable to both fixed and moving sides of the vacuum variable capacitors.
Applicable models for VH type
Applicable models for VM type
AWF-1 (fixed side)
AWM-1 (moving side)
AWF-2 (fixed side)
AWM-2 (moving side)
