LanTraffic V2 is a traffic generator for IP networks using different protocols:
UDP (User Datagram Protocol)
TCP (Transmission Control Protocol)
ICMP (Internet Control Message Protocol)
SCTP (Stream Control Transmission Protocol) * NEW
-
Address: 1170 Foster City Blvd., Suite 314,
Foster City, CA 94404, USA -
Call Us: +1 (650) 572 0122
Email Us: info@omnicor.com
-
Monday - Friday: 08:00 - 17:00
Saturday - Sunday: Closed
LanTraffic V2 - Enhanced Software Packet Generator
IP packet generator / analyzer for network and product testing$750.00
- Features
- Automatic data generator by using mathematical laws,
- Automatic Mode (for UDP and TCP connections): you can select one mathematical law for connections starting time, and then select a second mathematical law for data volume to be sent.
- Data volume to send (2)
- File: selection of a file to send.
- For each connection, the following statistics are displayed by the Sender and can be saved into a file:
- Jitter (1)(2)
- Packets generator: many parameters can be defined (number of packets to send, inter packet delay, packet contents and more…)
- Received data volume (volume of data sent by the remote) (1)(2)
- Received packet throughput
- Received packet throughput (1)(2)
- Received packets (packets sent by the remote) (1)
- Received throughput
- Received throughput (1)(2)
- Remaining volume of data to send (2)
- RTT mean (Round Trip Time) (1)
- SCTP cannot be used on both Sender and Receiver parts at the same time. For each connection, the following statistics are displayed by the Receiver and can be saved into a file:
- Sent data volume (1)
- Sent data volume (2)
- Sent packet throughput
- Sent packet throughput (2)
- Sent packets
- Sent throughput (1)
- Sent throughput (2)
- Sequence numbering errors (1)

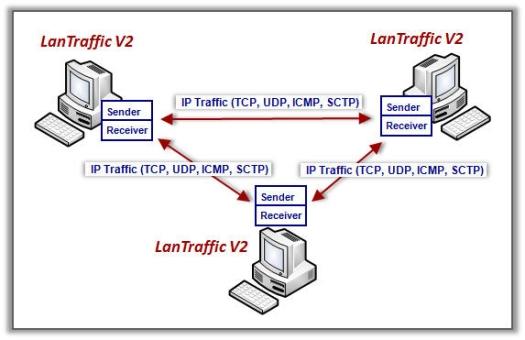

- The Receiver receives traffic (up to 16 simultaneous connections) and operates five different working modes: Absorber, Absorber File, Generator, Echoer and Echoer File.
- The Sender generates up to 16 simultaneous connections (Unicast, Multicast or Broadcast - for UDP) with TCP, UDP, ICMP or SCTP protocol. The connections can be established in two different testing modes:
- Unitary Mode: you can select the traffic generator data source and configure packets size and inter packet delay for each connection. LanTraffic V2 offers three different data sources:
- With SCTP protocol, only the Absorber and Absorber File working modes are available.
- Applications
- And more...
- Applications testing that require guaranteed bandwidth
- Generation of UDP, TCP, ICMP and SCTP traffic with many different load profiles
- Network bandwidth management
- Testing of the impact of applications and equipments on the network (e.g. Voice over IP, Video, fax, multimedia, and more...)
- Traffic statistics viewing
