  • NuDOG-301T (10/100/1000 Base-T)

NuDOG-301T (10/100/1000 Base-T)

NuDOG-301 is a handheld device with two Gigabit ports for Ethernet testing. The main functions of NuDOG-301 include multi-streams generation, TAP/Loopback test, and NIC emulation.

  • Features
  • 512Mbits wirespeed packet capture buffer per port
  • Hardware based wirespeed streams generation, analysis, network TAP and NIC
  • High precision 1 ppm temperature-compensated oscillator provides accurate clock speed to ensure the reliability of the tests
  • High precision performance for measuring throughput, latency, packet loss and disordered sequence
  • Injecting errors in transmitted traffic to simulate and test abnormal situations
  • Layer 1 and Layer 2 loopback test
  • Real-time statistics for each port, including transmitted/received frame for VLAN, IPv4, IPv4 fragment, IPv4 extension , ICMP, ARP, total bytes/packets, CRC, IPCS error and over-and-under size frames
  • RFC 2544 test suite
  • RFC 2889 test suite
  • User-friendly interface that supports various parameter configurations and meets various test requirements
  • Wirespeed traffic capturing with programmable filter and trigger criteria
  • Applications
  • Network Performance Testing
  • Traffic/Protocol Analyzing
  • Traffic/Protocol Simulation and Monitoring
  • Troubleshooting/ Debugging

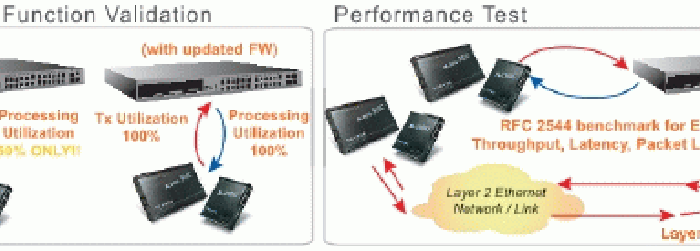

NuDOG-301T (10/100/1000 Base-T)-diagram
