  • NuBAR-1000 (10/100/1000 Base-T)

NuBAR-1000 (10/100/1000 Base-T)

Gigabit Ethernet tester Manual control

NuBAR-1000 is an ideal Ethernet tester for testing and troubleshooting potential problems of data transmission and bandwidth in the field. NuBAR-1000 works by pair with roles of Lord and Servant. Without extra standby personnel at the other test site, two NuBAR-1000 negotiate with each other automatically, start bi-directional symmetric / asymmetric wirespeed transmission, synchronize the test result and store result at Lord NuBAR-1000.

  • Features
  • 10 pre-defined and 5 user-defined function modes
  • 10/ 100 Mbps full / half and 1000 Mbps full duplex Ethernet test equipment with wirespeed packets generator and counter for analysis.
  • 14 real-time on-panel LED indicators to show test status and errors
  • Built-in multiple counters can be displayed by PC in real-time or saved in built-in flash.
  • Operable alone or by pair without PC
  • Operation Buttons and configuration rotary switches on control panel for all kinds of operation
  • Power consumption is less than 3 W, powered by built-in NI-MH battery, or USB cable via PC or external adapter.
  • Powerful software application for advanced configuration/operation via USB cable
  • Printed Label on the side body for instruction of all function modes
  • Real-time Configuration and counter via control from mini-USB port.
  • User friendly operation interface
  • Applications
  • Asymmetric transmission test such as ADSL
  • Integrated test solution for customized proposal.
  • Network Detecting in Research and Development
  • Network wiring task and trouble-shooting in office or building
  • On-site test / repair / maintenance of network in telecommunication and cable wiring business
  • Solution of Last-mile test between CO (central office) and CPE (customer premises equipment)

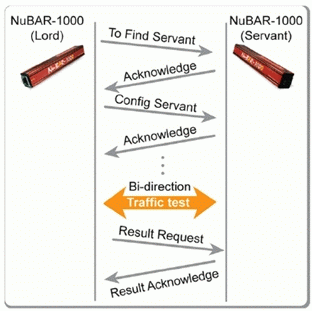

NuBAR-1000 (10/100/1000 Base-T)-diagram
NuBAR-1000 (10/100/1000 Base-T)-diagram
