Omnicor - Test Module XM-RM671 - standard - IP performance testing tools

Test Module XM-RM671 - standard

XM-RM671 is 4 Ports 100 Mbps POF Ethernet Test Module with high test quality and reliable test result. POF interface is an inexpensive solution when it compare with glass fiber that has expensive total cost. The distance for transmission is up to 100 meter with no generation of electromagnetic radiation and also free of electromagnetic interference, crosstalk and noise. Request of high-speed and low cost home networking is possible by POF.

Features
4 POF ports per module and they are expandable with more module in the same chassis.
Flexible contents (data) and length for the generation of packet payload.
Flexible Frame size from undersize to oversize frame can be generated and tested for different kinds of DUT
Fully RMON counter and VLAN counter for analysis of test result after receiving of generated packets.
Generation and response to ARP and Ping for layer 3 testing
SDFR (Self-Discover Filtering Rules) technique that criteria for filter and capture can be input directly without calculating mask.
Standard type modules with lower cost per port for mass production test of DUT.
Statistics analysis counters for received multi-stream traffic.
Test module for 100Mbps Fast Ethernet equipment with POF (Plastic Optical Fiber) connection.
Verify oscillator\'s speed rate of DUT
Verify oscillator\\\'s speed rate of DUT

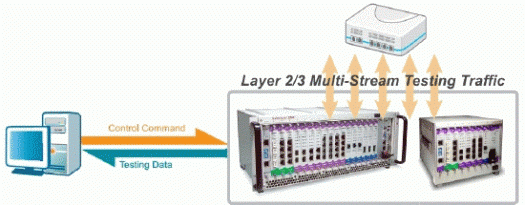

Wirespeed generation and analysis of Layer 2-3 packets in Fast Ethernet
Xtramus\'s proprietary embedded tag, X-TAG for sequence check and latency measurement of packets per stream in Rapid-Matrix.
Xtramus\\\'s proprietary embedded tag, X-TAG for sequence check and latency measurement of packets per stream in Rapid-Matrix.

Applications
Apply to Telecommunication room, R and D laboratory, Data center, etc
Test module for Fast Ethernet POF device.
Test module for new design network product in R and D laboratory that need report of precise statistics and result.
Test module for quality control of network device in mass production line.
