  • NuDC-4U (DC)

NuDC-4U (DC)

4 Channels DC Power Monitor DC power statistics

NuDC-4U is an innovative product that provides better solution for power probing. Common DC power statistics including voltage, ampere and even the watt can be read instantly via NuDC-4U. Moreover, up to 4 sets of individual powers can be monitored simultaneously and the LCD screen can also display the maximum and minimum value of the current power during the test.

  • Features
  • Detection current is up to 16A if circuits are connected in parallel by SC4S accessory board
  • Detection range from ±0.1V to ±70V, 10mA to 8A and 0.001W to 560W
  • E-mail notification by pre-defined alarm criteria from users
  • High speed and accurate measurement of voltage, current and watt
  • High speed and precise digitizing capture of power status
  • LCD screen embedded on NuDC-4U with real-time statistic displaying function
  • Monitor 4 DC power sources channels simultaneously
  • Using mini-USB port as power source, as well as interface for accessing logs and utilities on PCs
  • Utility software with 2D curve-diagrams, user-interface with advanced functions such as split-screen, curve select switch, resizing and overlapping
  • Various instant-readiness optional accessories
  • Voltage and current in each channel can be monitored at the same time
  • When connecting to PC via mini-USB port, GUI utility softwares can provide long-time statistics in diagrams
  • Applications
  • Compare variation of the same test circuit design on different DUT.
  • Debug DC power problem of circuit board
  • Detect degradation of electronic component.
  • Long term monitoring of DC power supply
  • Trace specified power status event
  • Warning of unstable DC power supply

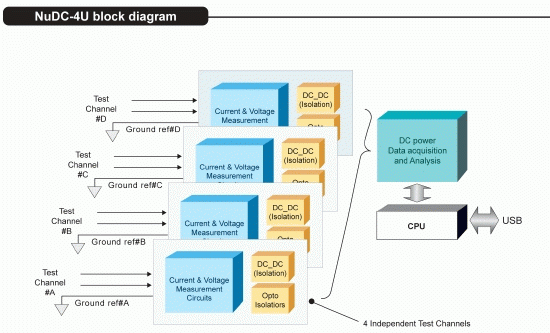

NuDC-4U (DC)-diagram
NuDC-4U (DC)-diagram
