  • XG2-3


XG2 Series are high-performance 10G media converters for connecting different 10G devices and link. XG2 Series functions as a copper-to-fiber converter, a fiber mode converter, or a fiber repeater. Four interface of XG2 series are available, supporting RJ45 to SFP+, SFP+ to SFP+, SFP+ to XFP, and RJ45 to XFP.

  • Features
  • Both SFP+ and RJ-45 port can connect to other 10Gbps Ethernet switch for expansion.
  • Console for firmware upgrade and loopback function configuration.
  • Conversion of media type between fiber (SFP+, XFP) and twisted pair copper wire (RJ-45 connector)
  • Interface of 10GBASE-R that based on IEEE802.3ae
  • Interface of 10GBASE-T that based on IEEE 802.3an
  • Link/Rx status: Display the Network linked/Receive status.
  • Loopback status: Indicate the Loopback test status of A and B ports.
  • LR status: Indicate the LR Transceiver or SR transceiver is plugged or not.
  • Real-Time conversion between 10GBASE-T and 10GBASE-R
  • Real-time LED display of running status
  • SFP+ status: Indicate the SFP+ fiber connector is connected or not.
  • SFP+/Rx status: Display the Network linked/Receive status (For XG2-1 only)
  • Subsidiary device for test on 10Gbps Ethernet switch with 10GBASE-T and/or 10GBASE-R ports
  • SYS status: Indicate system operation status.
  • Applications
  • Apply to Telecommunication room, R and D laboratory, Data center, etc.

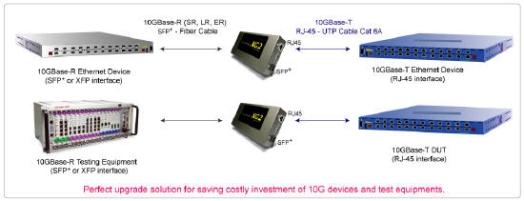

  • Connection between fiber based and copper wire based 10Gbps Ethernet equipment.
  • Media Converter for network backbone.
