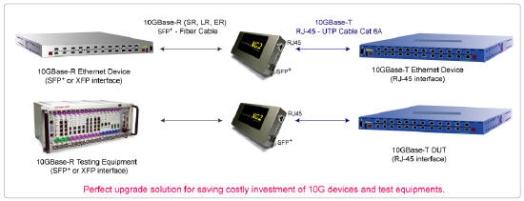

XG2 Series are high-performance 10G media converters for connecting different 10G devices and link. XG2 Series functions as a copper-to-fiber converter, a fiber mode converter, or a fiber repeater. Four interface of XG2 series are available, supporting RJ45 to SFP+, SFP+ to SFP+, SFP+ to XFP, and RJ45 to XFP.
-
Address: 1170 Foster City Blvd., Suite 314,
Foster City, CA 94404, USA -
Call Us: +1 (650) 572 0122
Email Us: info@omnicor.com
-
Monday - Friday: 08:00 - 17:00
Saturday - Sunday: Closed
XG2-2
- Features
- Both SFP+ and RJ-45 port can connect to other 10Gbps Ethernet switch for expansion.
- Console for firmware upgrade and loopback function configuration.
- Conversion of media type between fiber (SFP+, XFP) and twisted pair copper wire (RJ-45 connector)
- Interface of 10GBASE-R that based on IEEE802.3ae
- Interface of 10GBASE-T that based on IEEE 802.3an
- Link/Rx status: Display the Network linked/Receive status.
- Loopback status: Indicate the Loopback test status of A and B ports.
- LR status: Indicate the LR Transceiver or SR transceiver is plugged or not.
- Real-Time conversion between 10GBASE-T and 10GBASE-R
- Real-time LED display of running status
- SFP+ status: Indicate the SFP+ fiber connector is connected or not.
- SFP+/Rx status: Display the Network linked/Receive status (For XG2-1 only)
- Subsidiary device for test on 10Gbps Ethernet switch with 10GBASE-T and/or 10GBASE-R ports
- SYS status: Indicate system operation status.
