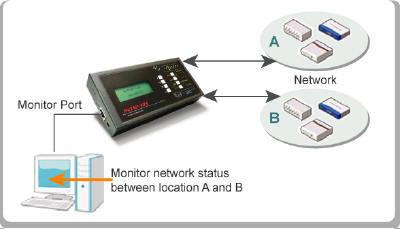

NuTAP-303 is portable network TAP equipment that can monitor and redirect any data streams that flow through this equipment. Network TAP is a method for monitoring dynamic situation of network without intruding it.
-
Address: 1170 Foster City Blvd., Suite 314,
Foster City, CA 94404, USA -
Call Us: +1 (650) 572 0122
Email Us: info@omnicor.com
-
Monday - Friday: 08:00 - 17:00
Saturday - Sunday: Closed
NuTAP-303 (10/100/1000 Base-T)
- Features
- 1 pair of Ethernet Gigabit combo (UTP/SFP) bi-directional network ports
- Active TAP based on store-and-forward architecture, and built-in buffer reduces possibility of forwarding packets loss.
- Auto negotiation and auto correction of twisted-pair polarity
- Auto network sensing (UTP or SFP) and auto negotiating of speed and duplex mode
- Filter and redirect TAP streams to monitor port by SDFR technique which can ease the loading of monitor PC.
- Interframe gap counters to reveal status of real-time wirespeed transmission.
- Monitoring port:
- Network ports:
- On-panel LCD display shows important network status.
- One 10/100/1000 Mbps UTP Ethernet port
- Statistic Counter: Packet Count, Packet Rate, Bytes, Bytes Rate, Line Rate, Utilization, Collision, Error Packets, Oversize, Undersize, Packet size (64~1518), Broadcast, Multicast, Pause, VLAN, IPv4, Frame Gap and other RMON counters.
- Support 1000 Mbps full duplex and 10/100 Mbps half/full duplex mode
- System control and Firmware/FPGA upgrade via USB.
- Applications
- RF matching networks
- Traffic monitoring and analysis by networking device developers and/or network operators
